Metrici Access Terminal
Input/output terminal with display and built-in camera for QR code scanning
Specifications
- Display
- 7" touchscreen display
- Connectivity
- 1 Ethernet port (RJ45, Cat6A compatible)
- Camera
- 1 × 4 MP camera for scanning QR codes
- Networking
- WiFi 802.11 b/g/n and Ethernet 10/100 Mbps
- Inputs / outputs
- 1 × IN (induction loop — vehicle presence), 1 × OUT (barrier operation)
- Power
- PoE 802.3bt via Ethernet cable — no separate power adapter needed
- Software compatibility
- Metrici Web Application with LPR license (LPR and Parking for LPR)
- Interface
- User Interface plus Web-based Dashboard for admins
- Operating temperature
- −20 to +50 °C, IP55
- Mounting
- Wall / flat-surface or pole mounting bracket (included)
- Dimensions
- 166 × 288 × 70 mm (W × H × D)
- Weight
- 2.1 kg
- Case
- Compact PET enclosure for a display and camera module, intended for fixed external mounting. The design includes a front screen opening, a camera lens cutout, rear keyhole mounting slots, RJ45 Ethernet connector openings, and ventilation/access slots for cable routing and service access.

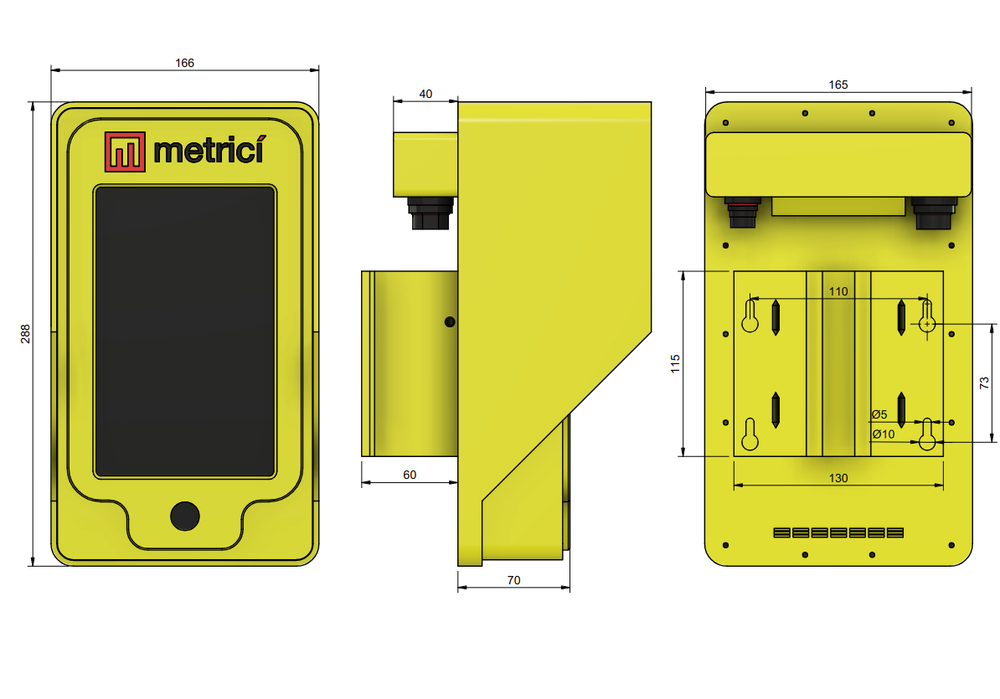

Dimensions
