Metrici LED Display RGBARR
Programmable RGB number & arrow display
Specifications
- Resolution
- 64 × 32 pixels
- LED colors
- RGB
- Features

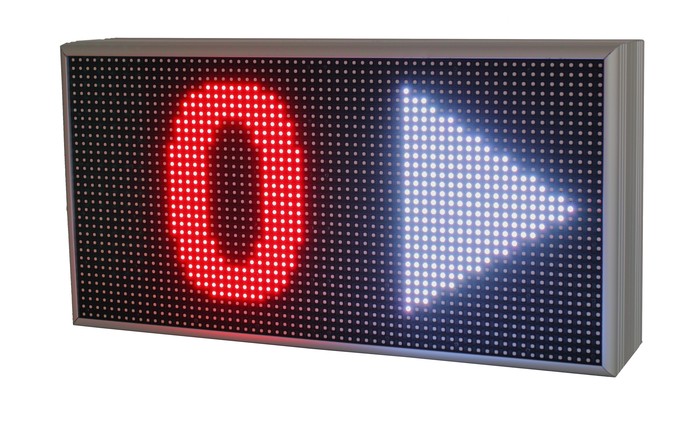

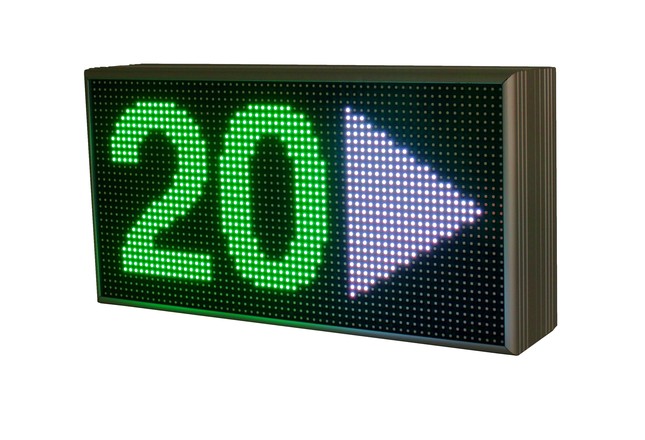

- It can show 2 numbers and an arrow. The position and the orientation of the arrow can be changed. All parameters can be changed from its own web interface.
- Dimensions
- 33.5 × 17.5 × 8 cm
- Networking
- WiFi
- Protocol
- HTTP over TCP/IP
- Software compatibility
- Metrici2 v3.1 and above
- Power requirements
- 150 W
- Working temperature
- −20 to +50 °C, IP66
- Weight
- 2 kg
- Case
- Heavy-duty aluminium, 4 mounting holes (2 top and one on each side), backplate with isolated I/O connectors
Examples
