Metrici Multicontroller PoE
Smart ‘all in one’ LAN controller
Specifications
- I/O
- 2 digital inputs, 2 digital outputs (relay driven), 1 Wiegand 26-bit interface
- Features
- Web interface for setup and monitoring; can send triggers to 2 Metrici engines, can open 2 barriers; can convert each license plate number into a Wiegand ID by connecting to the Metrici2 database.
- Dimensions
- 182 × 102 × 79 mm (L × W × H)
- Networking
- WiFi 802.11 b/g/n and Ethernet 10/100 Mbps
- Protocols
- HTTP over TCP/IP, RAW over UDP/IP and Wiegand 26-bit
- Software compatibility
- Metrici2 v3.6 and above
- Power requirements
- PoE 802.3at
- Working temperature
- −20 to +50 °C, IP65
- Weight
- 0.35 Kg (350g)
- Case
- PET enclosure with 2 rear mounting brackets with screw holes, 2 bar-mounting clips on the top cover, WIREL terminal blocks for cable connections, and an RJ45 Ethernet connector cutout.

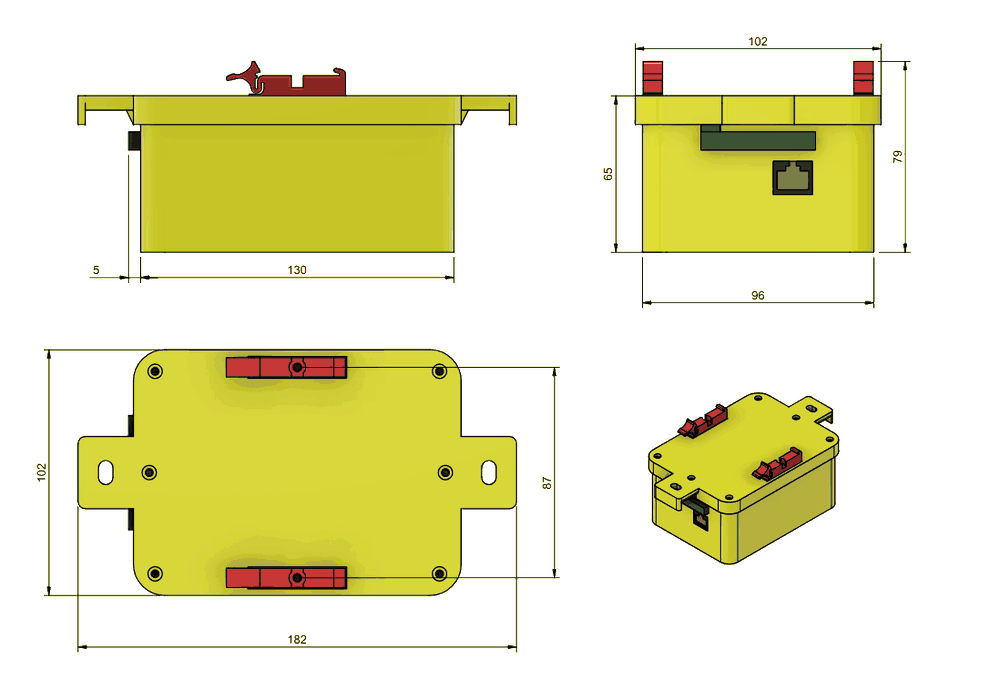

Dimensions
