Datasheet
rev. 001 · June 2026

Metrici Payment Terminal

Unattended parking payment kiosk with built-in QR scanner

Specifications
Display
10" touchscreen display
Resolution
1920 × 1200 (16:10)
Input
Touchscreen + integrated QR / barcode scanner
Payment
Stripe checkout via user's mobile phone (Card, Apple Pay, Google Pay, Link, Klarna)
On-device payment hardware
None — no card reader, no cash slot
Connectivity
1 Ethernet port (RJ45, Cat6A compatible)
Power
PoE+ (IEEE 802.3at), 48 V DC over Ethernet, ≤ 25.5 W
Front face dimensions
302 × 292 × 150 mm (depth)
Languages
English, Romanian, Bulgarian, Hungarian, Polish, Serbian, Ukrainian, Turkish, Croatian, French, Italian, Spanish, Portuguese, German, Dutch
Software compatibility
Metrici Web Application with Parking Module license
Interface
Touchscreen for end users, admin configuration panel for installers
Weight
3.5 kg
Case
Large PET enclosure designed to house a display and camera module, featuring a front screen opening, front-facing camera opening, rear electronics compartment, wall-fixing keyhole slots, RJ45 Ethernet connector, and rear ventilation/access openings for wiring and maintenance
Dimensions

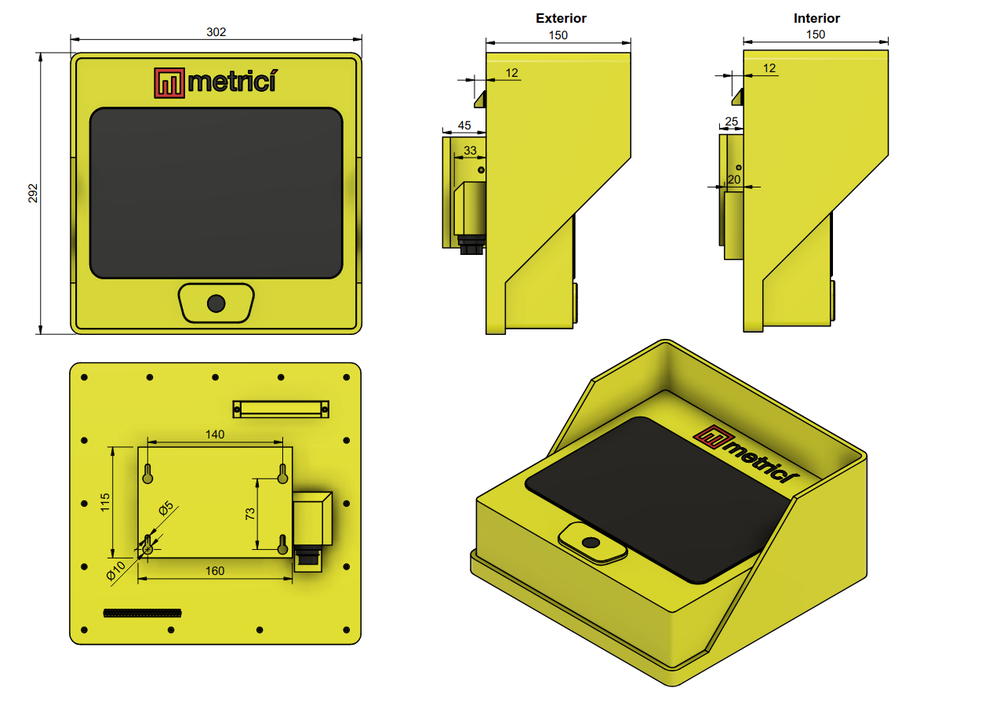

Mechanical drawing of the Metrici Payment Terminal showing front, side (exterior and interior) and rear views, with overall dimensions of 302 × 292 mm and 150 mm depth, plus the rear mounting-hole pattern.
All dimensions in millimetres (mm)
