Metrici Signal Light Exterior
Red/Green indicator LAN controller with built-in lights
Specifications
- Connectivity
- 1 Ethernet port (PoE), built-in red light, built-in green light
- Networking
- WiFi 802.11 b/g/n and Ethernet 10/100 Mbps
- Protocols
- HTTP over TCP/IP
- Power
- PoE (IEEE 802.3af) via Ethernet cable — no separate power adapter needed
- Dimensions
- 182 × 102 × 65 mm (L × W × H)
- Operating temperature
- −20 to +50 °C, IP65
- Software compatibility
- Metrici v3.3 and higher
- Interface
- Web-based dashboard with 3 sections: Dashboard, Settings, User
- Weight
- 0.4 kg (400 g)
- Case
- A PET enclosure with two rear mounting brackets featuring screw holes, an RJ45 Ethernet connector cutout, and two indicator lights: one red and one green.

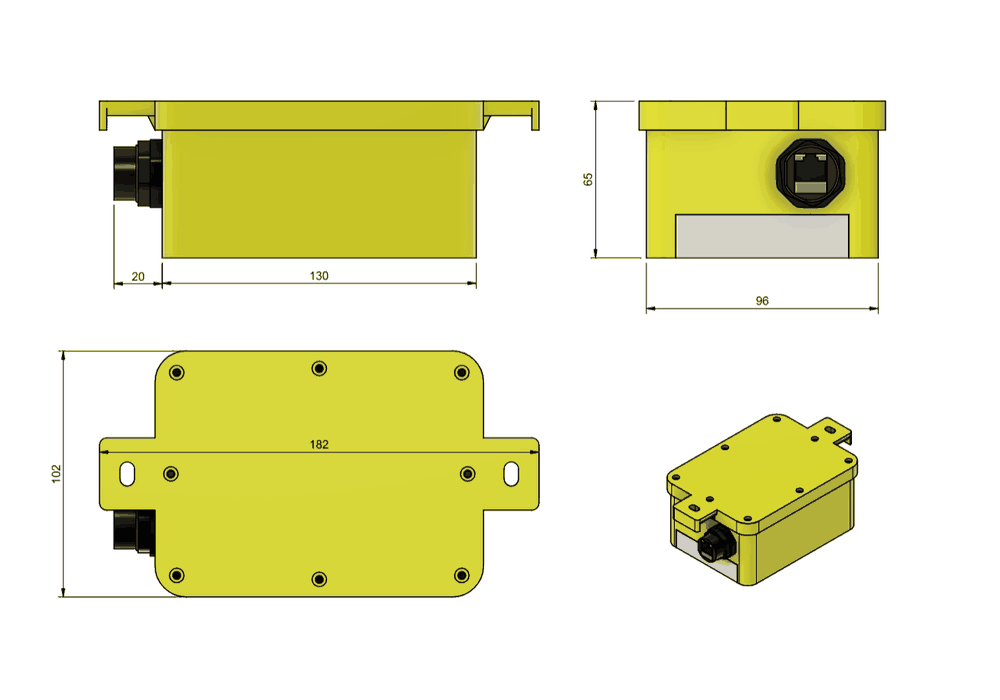

Dimensions
